6" x 1-1/2" Shock Absorbing Stem Mount Rigid Caster with Brake - 770 Lbs. Capacity | 7M-GDS150BRS
7M-GDS150BRS6" x 1-1/2" Shock Absorbing Stem Mount Swivel Caster with Brake - Part# 7M-GDS150BRS
This heavy duty spring loaded caster is the premium shock absorbing caster available for loads requiring 500 pounds of capacity or less. Not only does it protect sensitive equipment from shock loads and vibration but it also reduces noise during transportation and has the ability to roll over obstructions.
The 7M-GDS Series features a special NBR rubber based spring system instead of conventional metal springs. This eliminates shortened service life due to rust or loss of tension within standard metal springs. Additionally, the NBR rubber offers a softer, more ergonomic ride with less recoil when the caster goes over obstacles. With multiple wheel and mounting options, the 7M-GDS Series is the go-to series for a wide variety of applications. This caster is RoHS and CE Mark compliant.
To watch how these casters work - Click Here
For Step files, DWG, & PDF drawings, please contact us and include the part number(s) and file type needed.
Availability:
These casters typically ship in 1-2 business days
Specifications:
Please visit our Buying Guide for a quick explaination of how to select the correct spring loaded caster for your application.
| Minimum Weight to Begin Compression: 5 Lbs. per Caster |
Mounting Height: 9.05" (230mm) |
| Maximum Weight to Full Compression: 230 Lbs. per Caster | Shock Absorbing Extent: 1.18" (30mm) |

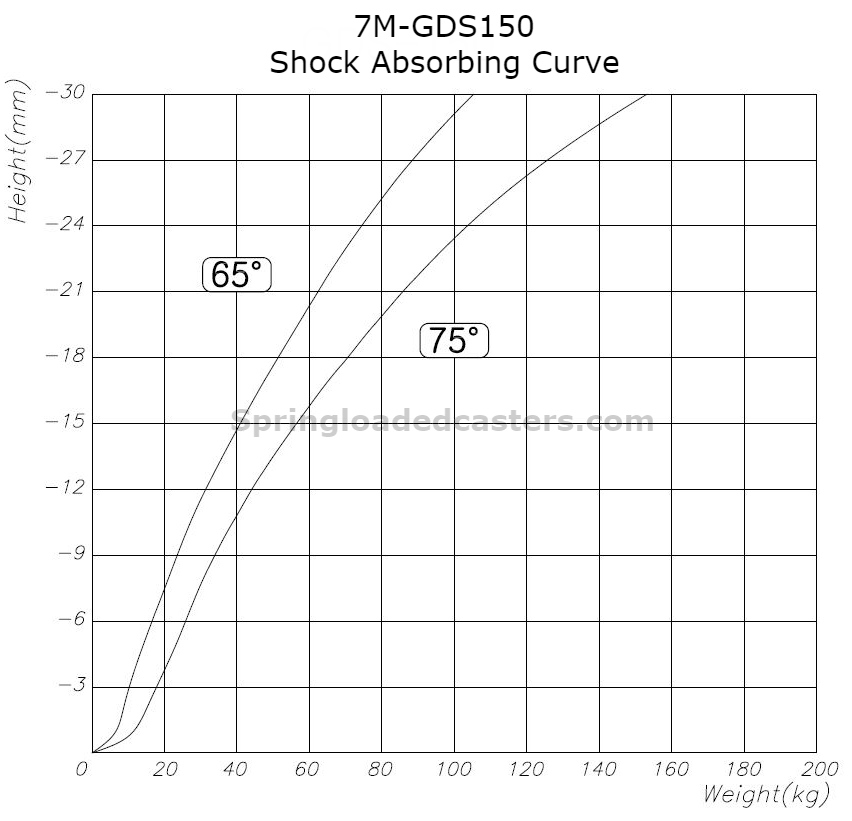

| Recommended Load / Sweet Spot: 118 Lbs. per Caster | Shock Absorber Material: 65 Durometer Rubber Spring (75 durometer available upon request) *See chart in pictures |
| Recommended Load / Sweet Spot with Four Casters: 472 Lbs. | Caster Rig Material Type: Pressed Steel Frame with Aluminum Legs |
| Total Weight Capacity: 770 Lbs per Caster (shock absorption stops at 118 pounds) | Caster Rig Color/Finish: Khaki Colored Powder Coating |
| Wheel Diameter: 5.91" (150mm) | Mounting Stem Size: M16 |
|
Wheel Tread Width: 1.57" (40mm) |
Mounting Stem Length: .94" (24mm) |
| Wheel Type: Floor Protective Polyurethane on Aluminum | Mouthing Stem Thread Pitch: 2.0 |
| Wheel Bearing Type: Maintenance Free Ball Bearing |
Caster Type: Rigid with Brake |
| Wheel Durometer: 95 Shore A (+/-5) | Swivel Radius: N/A |
| Wheel Color: Clear with Yellow Tint | Swivel Construction: N/A |
| Temp Range: 14°F to 194°F | Weight: 6.61Lbs. |
| Link to Matching Swivel Caster: 7M-GDS150ASS |
| Link to Matching Swivel Caster with Brake: 7M-GDS150BSS |
| Link to Matching Rigid Caster: 7M-GDS150ARS |
Common Applications:
Spring loaded and shock absorbing casters are most often used for applications requiring a cushioned ride that protects from shock and vibration. Some common applications include medical equipment and carts, sensitive diagnostic and electrical equipment, laboratory equipment, mobile workstations, computer main frames and towers, sound and lighting equipment, food processing equipment, and many other applications.
About the Rig:
This heavy duty rigid caster rig is composed of a pressed steel base plate designed to be used with a cup pointed set screw that is attached to a powder coated aluminum frame and carbon steel legs. Attached to the carbon steel legs is a heavy duty ABS and carbon steel brake system. The rig houses a NBR rubber based spring system that eliminates shortened service life due to rust or loss of tension within standard metal springs. Additionally, the NBR rubber offers a softer, more ergonomic ride.
About the Wheel:
This shock absorbing caster comes standard with a premium polyurethane tread (95 shore A) molded to an aluminum core. The polyurethane tread is non-marking and safe for all floor types. The wheel also includes easy roll maintenance free ball bearings.
Options:
These spring loaded casters are also available with additional options listed below. Please contact us for price and availability.
- 75 Durometer Rubber Spring (See chart in pictures) - Custom Durometer Springs are also available
- Anti-static Wheels
- High Temperature Applications 250°C (482°F)
- Black Frame Color
